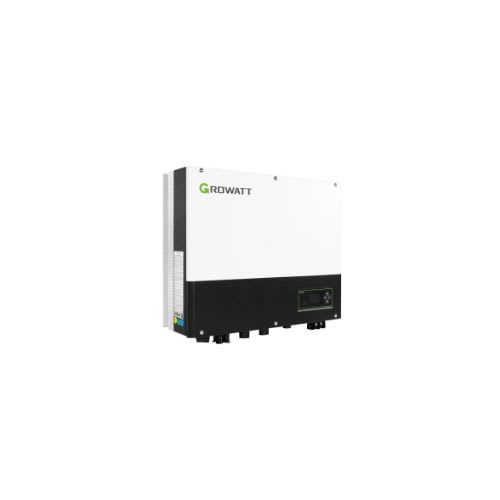

Growatt SPH 5000TL-BL-UP 5kW Hybrid Inverter

Description

The Growatt SPH 5000TL-BL-UP is a 5kW hybrid inverter designed for residential solar energy systems. It enables seamless integration of solar panels and battery storage, offering both grid-tied and off-grid functionalities. Below are the key features and specifications of this model:

Key Features

1. Hybrid Operation:
   • Combines solar power, battery storage, and grid electricity.
   • Allows energy management for self-consumption and backup during outages.
2. High Efficiency:
   • Up to 97.5% efficiency, ensuring minimal energy loss.
   • MPPT (Maximum Power Point Tracking) technology for optimized solar energy harvest.
3. Battery Compatibility:
   • Compatible with various battery brands, including Growatt’s own lithium-ion battery solutions.
   • Allows DC-coupled or AC-coupled battery integration.
4. User-Friendly Interface:
   • Built-in display and remote monitoring through the Growatt Shine app or platform.
   • Wi-Fi, LAN, or 4G connectivity options for real-time system monitoring.
5. Backup Power:
   • Supports uninterruptible power supply (UPS) functionality.
   • Can provide backup power during grid outages.
6. Smart Energy Management:
   • Features such as load shifting, time-of-use optimization, and peak shaving.
   • Allows users to maximize savings and efficiency.
7. Compact Design:
   • Wall-mounted, sleek design for residential installations.
   • Lightweight and easy to install.
8. Safety and Reliability:
   • Integrated safety features, including overvoltage and overcurrent protection.
   • IP65-rated for outdoor installations.

Specifications

• Rated Power Output: 5 kW
• Max PV Input Voltage: 550V
• MPPT Voltage Range: 125V–550V
• Number of MPPTs: 2
• Battery Voltage Range: 42V–58V (for compatible batteries)
• Max Efficiency: 97.5%
• Weight: Approx. 20 kg
• Operating Temperature Range: -25°C to +60°C
• Communication Ports: RS485 / Wi-Fi / LAN / 4G
• Protection Rating: IP65 (dustproof and waterproof)

Applications

• Ideal for homeowners looking to:
  • Reduce electricity bills.
  • Increase energy independence.
  • Maintain power during outages.
